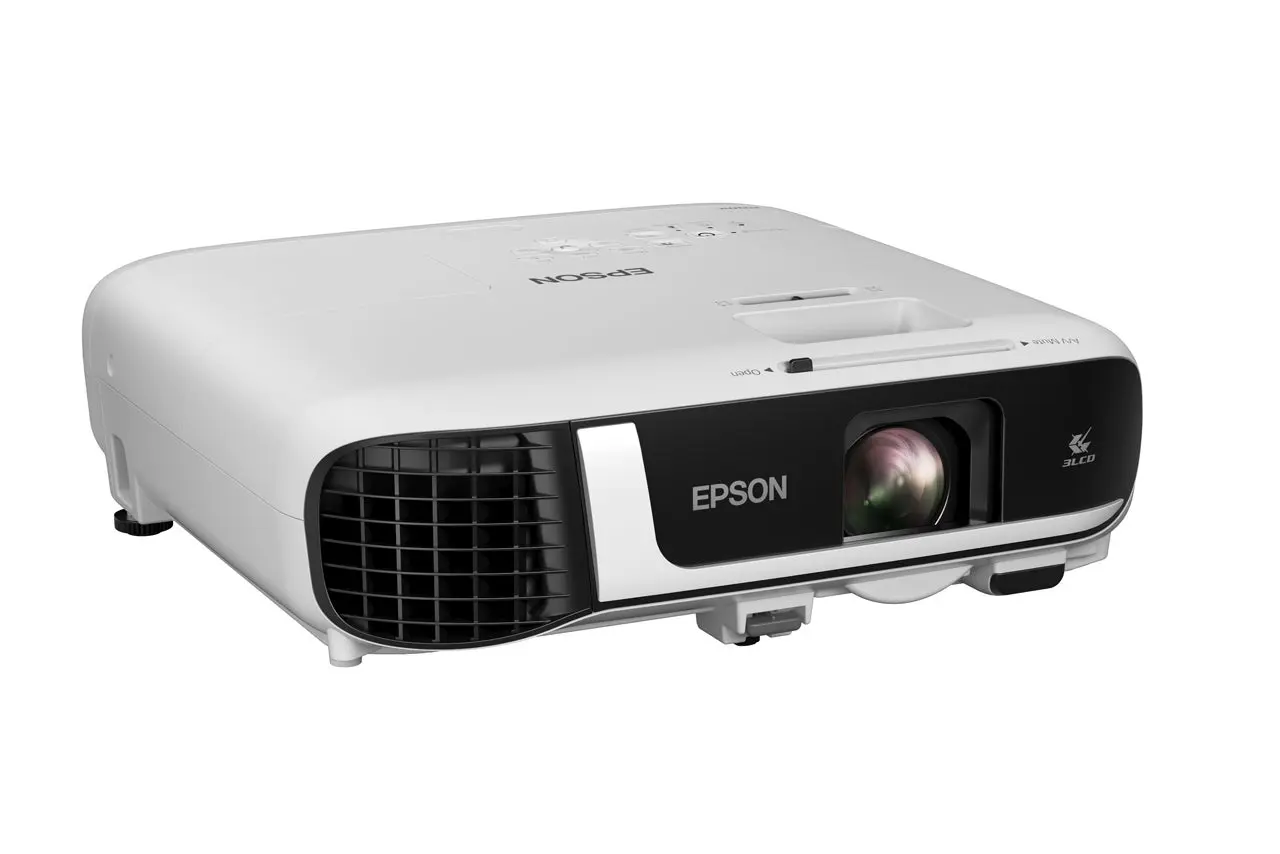

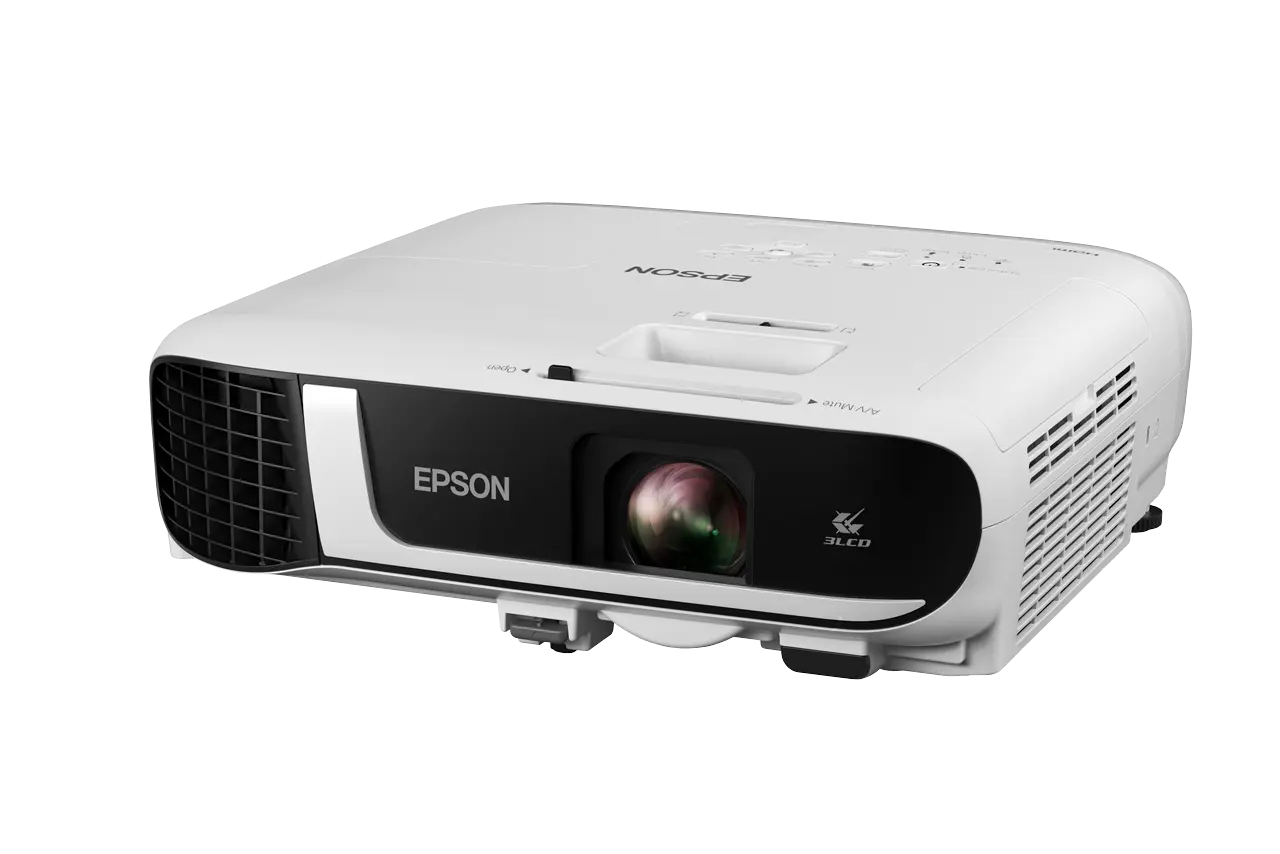

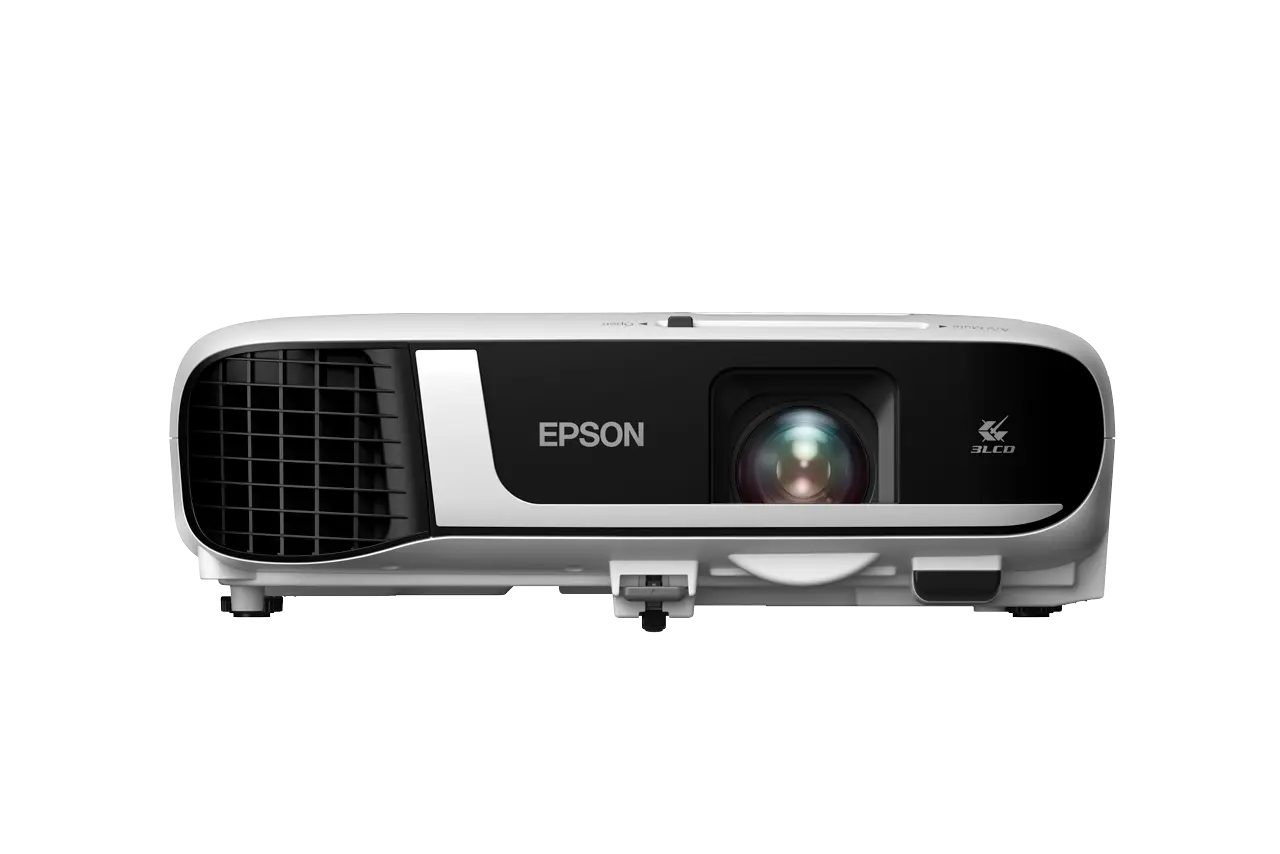

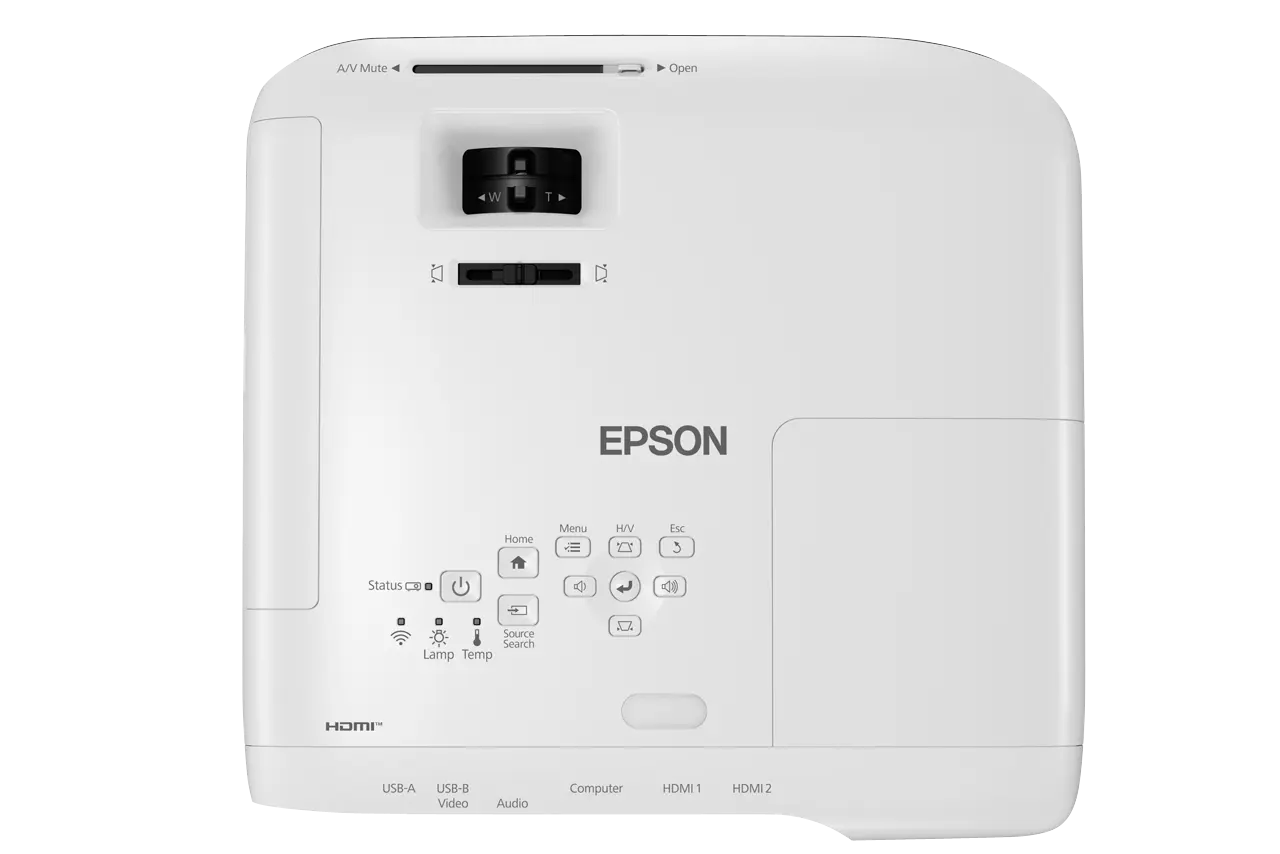

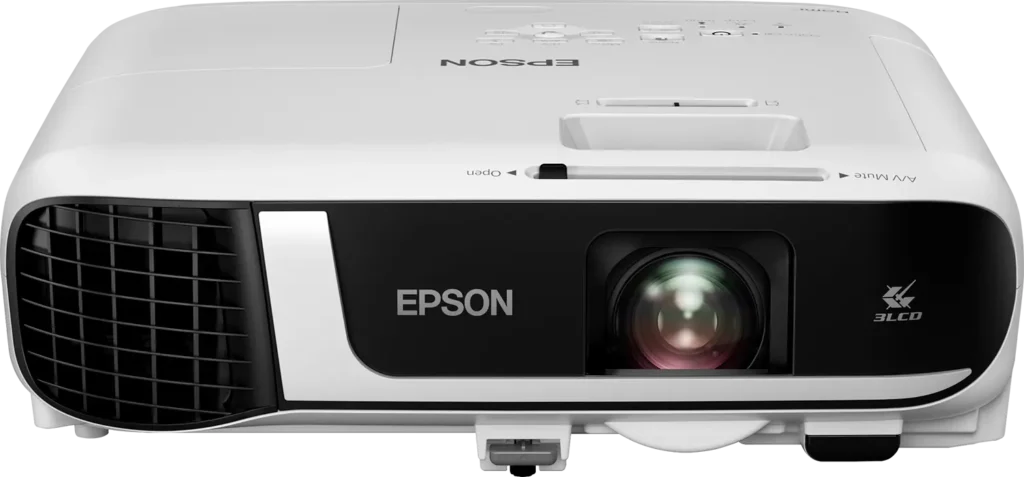

Epson EB-FH52 Projector
- Wireless Full HD bright images, supports lightning fast 240Hz refresh rate
3LCD technology and equally high white and colour light output
- Contrast ratio of 16,000:1
Deep, rich blacks and dense shadow areas
- Steam and share connectivity
Built-in wireless connectivity and Screen Mirroring
- Smart cost savings
Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control
Project from different sources with HDMI input and mobile connectivity
What's in the Box
- Main unit
- Power cable
- Remote control incl. batteries
- User’s Manual Set
- Warranty Documents
- Carrying Case
- Quick Start Guide
- HDMI Cable 1.8m
- Colour: White
- Display Size Min (Inches): 30
- Display Size Max (Inches): 300
- HDMI In: standard
- USB-A: standard
- USB-B: standard
- VGA IN: standard
- Audio IN: standard
- A/V Mute: standard
- Direct Connection to USB Visualiser ELPDC07: standard
- Direct Power On / Off: standard
- Instant Off: standard
- VGA Auto Power On*: standard
- HDMI Auto Power On: standard
- User Logo & Security Features: standard
- Source Search: standard
- ECO menu function: standard
- Schedule function: standard
- Front Exhaust: standard
- Speaker: standard
- Carrying bag: standard
- Vertical Keystone (Auto): standard
- Horizontal Keystone Manual: standard
- Vertical Keystone (Manual): standard
- Quick corner: standard
- PC-Free (photo viewer): standard
- PC-Free (multi-media viewer): standard
- Epson Projector Management: standard
- iProjection for PC/Mac: standard
- iProjection App for iOS and Android: standard
- iProjection App for Google Chromebook: standard
- QR Code for easy connection to iProjection*: standard
| Projection System | 3LCD Technology |
| LCD Panel | 0.61 inch with C2 Fine |
| Color Light Output | 4,000 Lumen- 2,400 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 4,000 Lumen - 2,400 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | 1080p |
| Resolution Enhancement | Full HD |
| Aspect Ratio | 16:9 |
| On-Screen Pixel Count | 2,073,600 |
| Contrast Ratio | 16,000 : 1 |
| Light source | Lamp |
| Lamp | UHE, 230 W, 5,500 h durability, 12,000 h durability (economy mode) |
| Keystone Correction | Auto vertical: ±30 °, Manual horizontal ±30 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 192 Hz - 240 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Throw Ratio | 1.32 - 2.14:1 |
| Zoom | Manual, Factor:1.6 |
| Lens | Optical |
| Screen Size | 30 inches - 300 inches |
| Projection Distance Wide/Tele | 1.76 m - 2.86 m ( 60 inch screen ), |
| Projection Lens F Number | 1.51 - 1.99 |
| Projection Lens Focal Length | 18.2 mm - 29.2 mm |
| Projection Lens Focus | Manual |
| Offset | 10 : 1 |
| USB Display Function | 2 in 1: Image/ Sound |

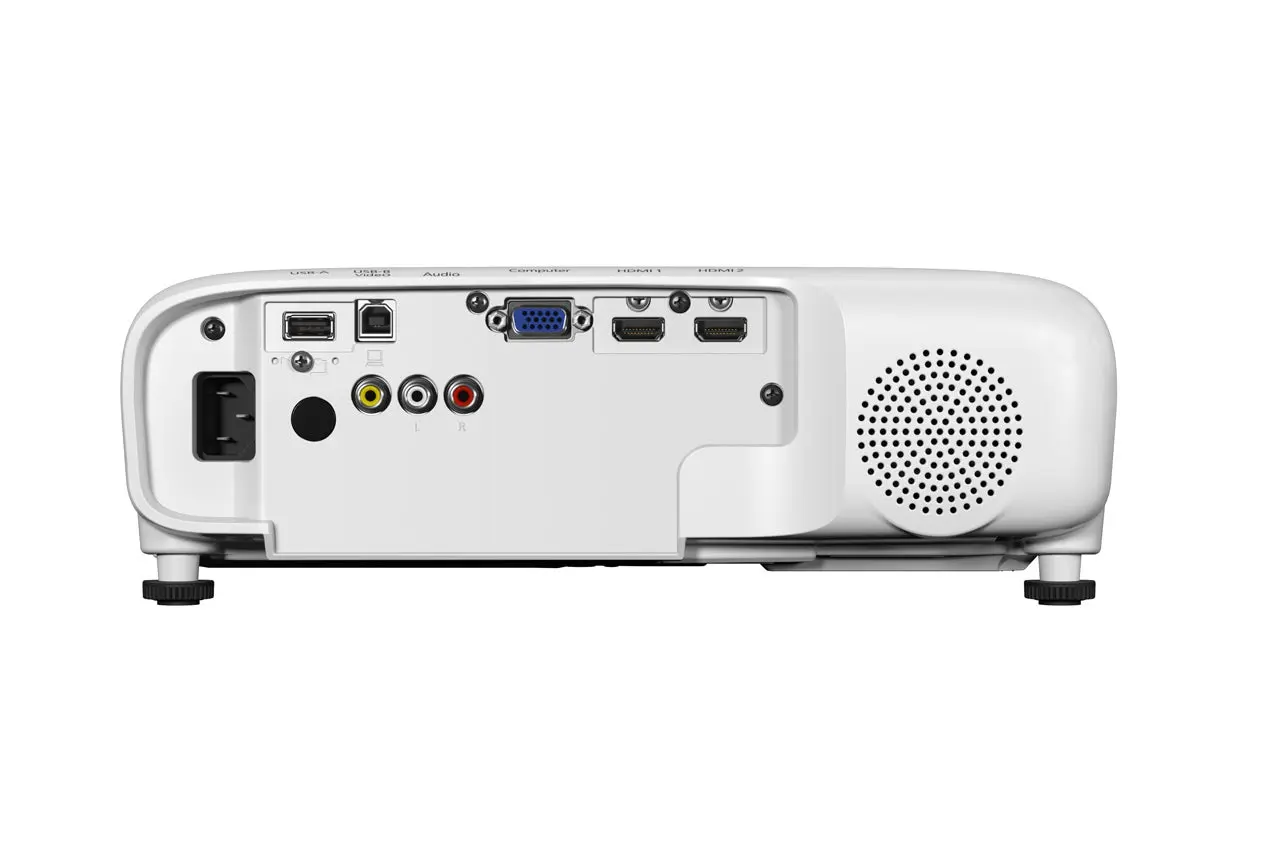

| Interfaces | USB 2.0-A, USB 2.0, VGA in, HDMI in (2x), Composite in, Miracast, Wireless LAN IEEE 802.11a/b/g/n/ac |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Security | Kensington lock, Padlock, Security cable hole, Wireless LAN security, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other features | AV Mute Slide, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Horizontal and vertical keystone correction, Long lamp life, Network projection, OSD copy function, PC Free, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by QR code |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Projector control | via: AMX, Crestron |
| Power consumption | 286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 309 x 282 x 90 mm (Width x Depth x Height) |
| Product weight | 3.1 kg |
| Noise Level | Normal:37 dB (A) - Economy:28 dB (A) |
| Supported Temperature | Operation 5° C - 40° C, Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance. |
| Included Software | Epson Projector Management |
| Options | Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Spare lamp, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Noise | Operation:37 dB (A)- Standby:28 dB (A) |
| Loudspeaker | 16 Watt |
| What's in the box | Carrying Case, HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document |
| Room Type / Application | Boardroom, Huddle space / Portable, Meeting room / Classroom |
| Positioning | Ceiling Mounted, Desktop |
| Colour | White |
| Warranty | 36 months Carry in, Lamp: 36 months or 1,000 h |
| Country Of Origin | Philippines |
- Requires iProjection App and an internet connection – only compatible with iOS and Android devices, and file sharing limitations may apply.
