Epson

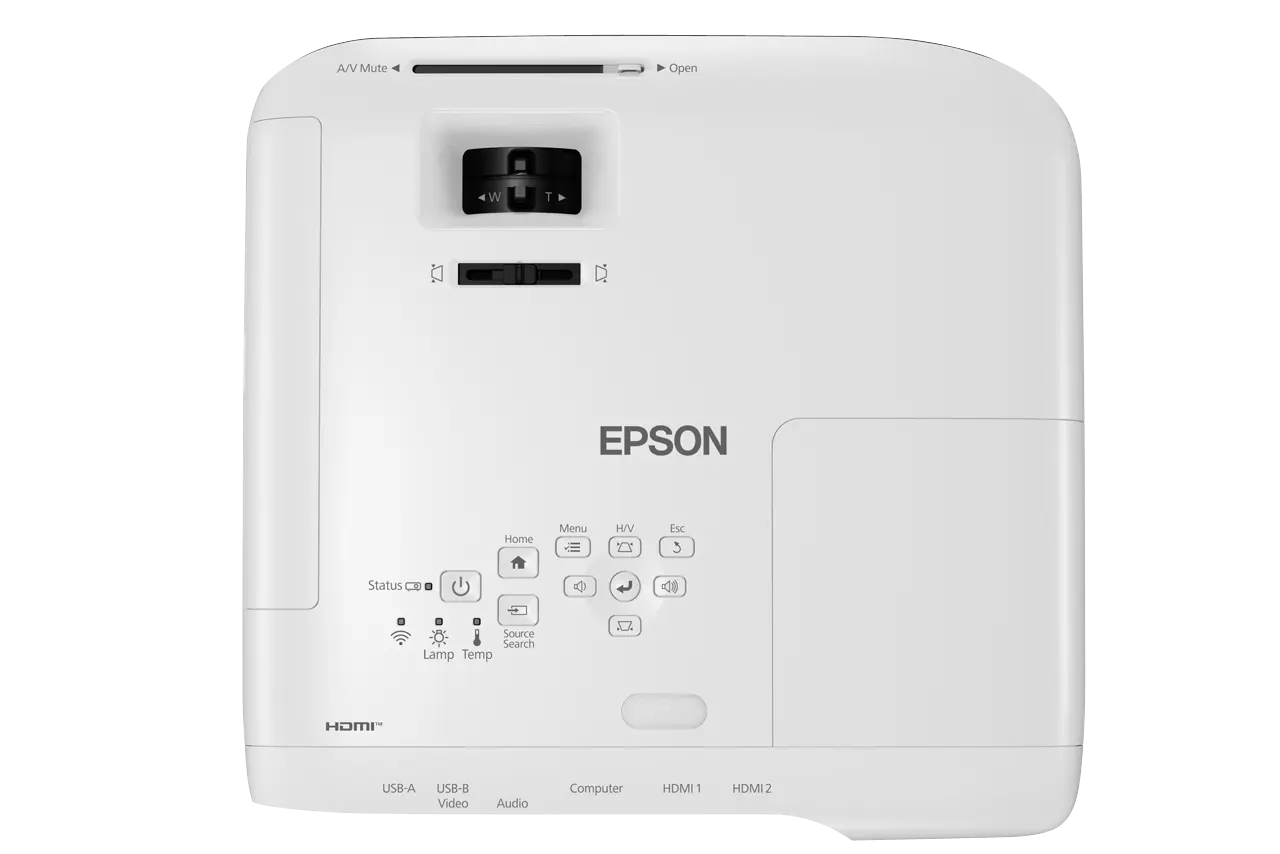

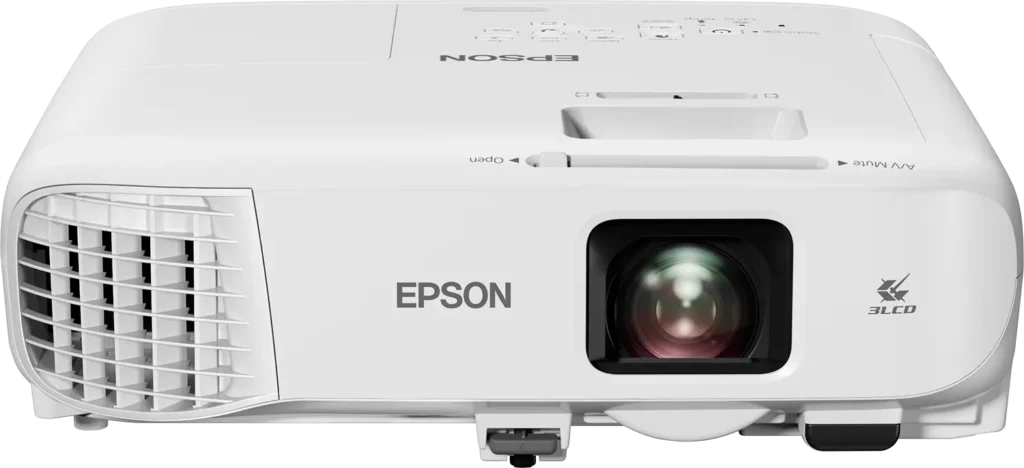

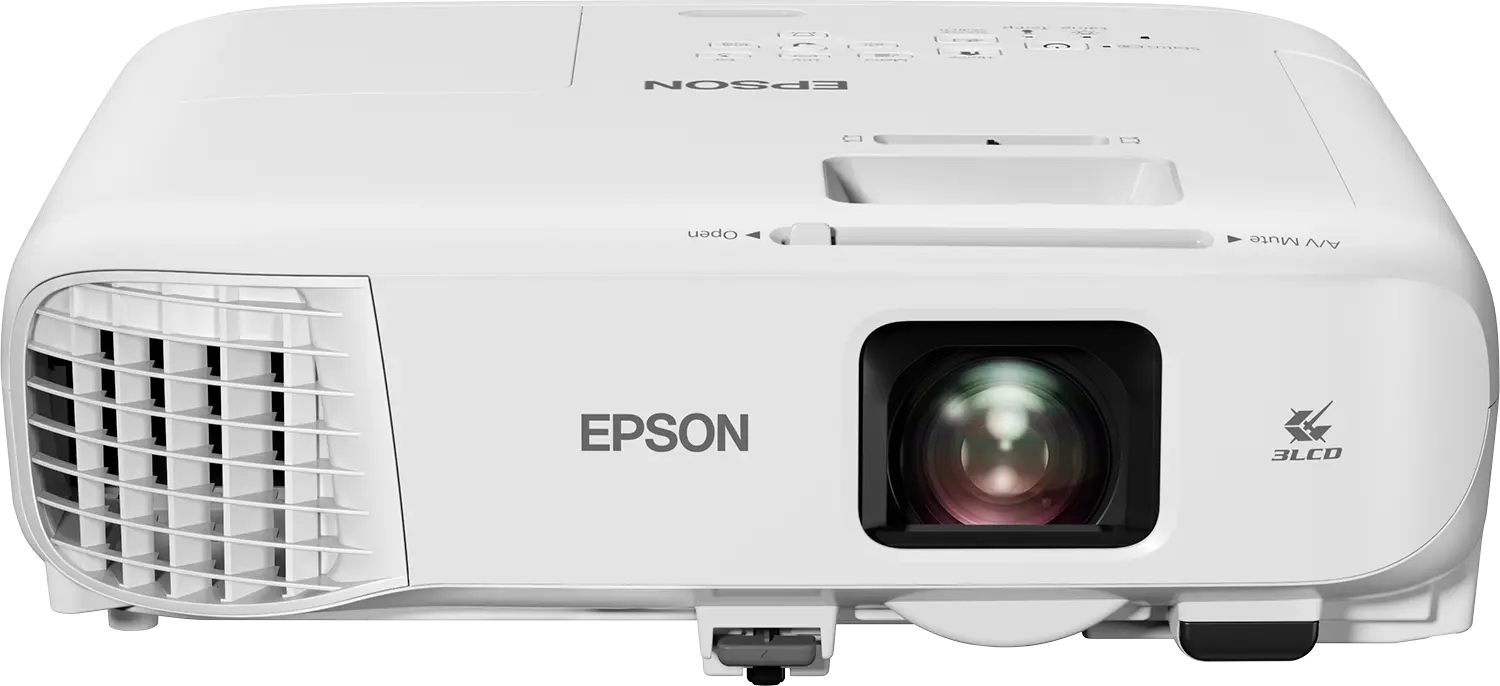

Epson EB-X49 Projector
- High-quality bright images
3LCD technology and equally high White and Colour Light Output
- Portable
Small and light enough to be carried and used across several rooms
- Wide connectivity options
Network-enabled and wireless capable
- Low total cost of ownership
Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control
Project from many sources with HDMI and optional wireless connectivity
What's in the Box
- Power cable
- Quick Start Guide
- Remote control incl. batteries
- Warranty card
- HDMI Cable 1.8m
- Colour: White
- Display Size Min (Inches): 30
- Display Size Max (Inches): 320
- HDMI In: standard
- USB-A: standard
- USB-B: standard
- VGA IN: standard
- VGA OUT: standard
- Audio IN: standard
- Audio OUT: standard
- RS 232C: standard
- A/V Mute: standard
- Direct Connection to USB Visualiser ELPDC07: standard
- Direct Power On / Off: standard
- Instant Off: standard
- VGA Auto Power On*: standard
- HDMI Auto Power On: standard
- User Logo & Security Features: standard
- Source Search: standard
- ECO menu function: standard
- Front Exhaust: standard
- Speaker: standard
- Carrying bag: optional
- Vertical Keystone (Auto): standard
- Horizontal Keystone Manual: standard
- Vertical Keystone (Manual): standard
- Quick corner: standard
- Split Screen: standard
- PC-Free (photo viewer): standard
- PC-Free (multi-media viewer): standard
- Epson Projector Management: standard
- iProjection for PC/Mac: standard
- iProjection App for iOS and Android: standard
- iProjection App for Google Chromebook: standard
- QR Code for easy connection to iProjection*: standard
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.55 inch with C2 Fine |
| Color Light Output | 3,600 Lumen- 2,400 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 3,600 Lumen In accordance with ISO 21118:2020 |
| Resolution | XGA |
| Aspect Ratio | 4:3 |
| On-Screen Pixel Count | 786,432 |
| Contrast Ratio | 16,000 : 1 |
| Light source | Lamp |
| Lamp | UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode) |
| Keystone Correction | Auto vertical: ±30 °, Manual horizontal ±30 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz - 120 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Throw Ratio | 1.48 - 1.77:1 |
| Zoom | Manual, Factor:1.2 |
| Projection Lens Zoom Ratio | 1 - 1.2 : 1 |
| Lens | Optical |
| Screen Size | 30 inches - 300 inches |
| Projection Lens F Number | 1.49 - 1.72 |
| Projection Lens Focal Length | 16.9 mm - 20.28 mm |
| Offset | 8 : 1 |
| USB Display Function | 2 in 1: Image/ Sound |
| Interfaces | USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A, Wireless LAN IEEE 802.11a/b/g/n/ac (optional) |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | PJLink |
| Security | Kensington lock, Security cable hole, Wireless LAN unit lock |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other features | AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by QR code |
| Video Color Modes | Blackboard, Dynamic, Presentation, sRGB, Theatre |
| Projector control | via: AMX, Crestron, Control4, Extron |
| Power consumption | 286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 302 x 249 x 87 mm (Width x Depth x Height) |
| Product weight | 2.7 kg |
| Noise Level | Normal:37 dB (A) - Economy:28 dB (A) |
| Supported Temperature | Operation 5° C - 35° C, Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 5 Watt |
| What's in the box | HDMI Cable 1.8m, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document |
| Positioning | Ceiling Mounted, Desktop |
| Colour | White |
| Warranty | 36 months Carry in, Lamp: 36 months or 1,000 h |
| Country Of Origin | Philippines |
